Product Details

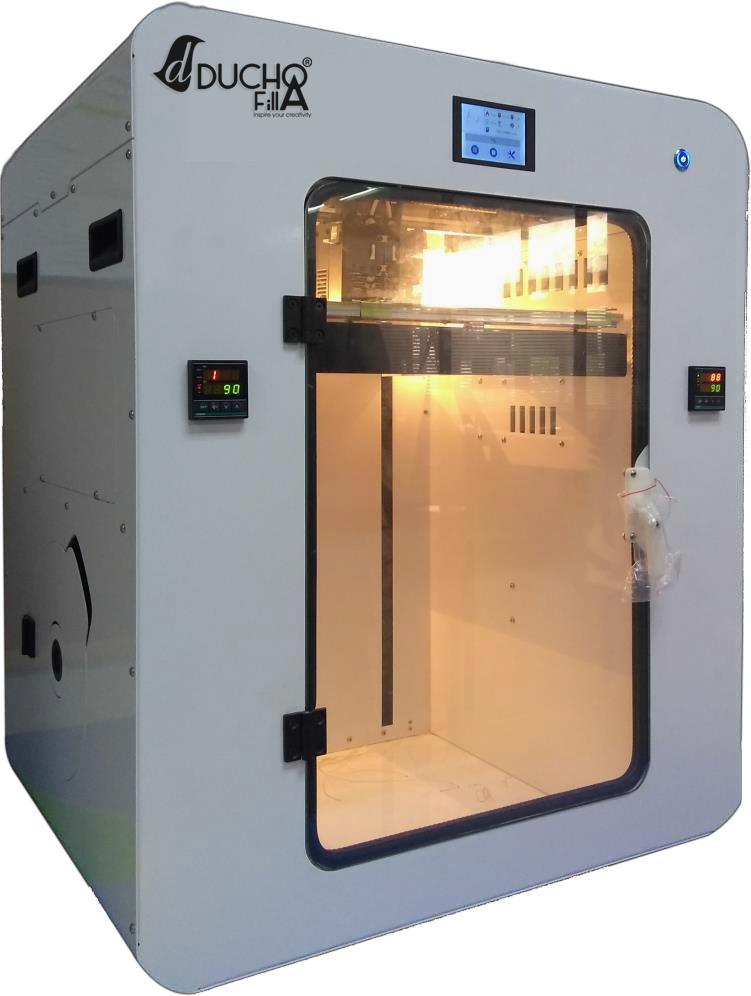

DuchoFilla 310/750

  • Largest Build Volume FDM based 3D Printer in INDIA
  • Supports Research based Polymer Materials
  • Available in Various Build Volumes
  • High Temperature range of Hot-End
  • High Resolution Prints with higher speeds
  • Articulated Armed Display and Control Board
  • Fully Enclosed and Temperature Controlled Chamber
  • Double Layered and Isolated Printing Chamber
  • Power Outage Recovery with Resume Option
  • Smart Sensing for Filament Supply Detection
  • Automatic Shutdown Feature in Idle state
  • Air Filtering and Purification System
  • Wi-Fi/USB/SD Card Driven Connection
  • Energy Efficient Smart Industrial Machine

Contact For Price

SKU: DuchoFilla 310/750 Category:
Technology

Fused Deposition Modeling

Build Volumes Available

310mm * 310 mm * 480 mm, 750mm * 750mm
* 750mm & 1000mm * 1000mm * 1000mm

Filament Compatibility

Adjustable Hot End Module for interchangeable
filaments of diameters 1.75mm and 2.85mm

Compatible Materials

PEEK, ULTEM, PC, PA, ABS, PLA, Wood, PVA, HIPS etc.

Print Accuracy

0.1 mm

Heating Element

Silicon Plates

Nozzle Max. Temp.

450°C

Max. Bed Temp.

130°C

Chamber Max. Temp

100°C

Working Ambient Temp.

15-40°C

Connectivity

SD-Card/USB/Wi-Fi

Portability of Machine

Wheeled Legs with locking facility

Hot-end Type

Dual Hot-end with Detachable mechanism

Heat-Bed Type

Polymer Fiber bed with Magnetic Suction Mechanism

XYZ Axis Guide Rail

Industrial Linear Guide Rail

Z Axis Lead Screw

Industrial Ball Screw

XY Axis Motor

Industrial 57 Closed Loop Motor

Z Axis Motor

Industrial 57 Closed Loop Motor

E Axis Motor

42 Stepper Motor(4 Pieces)

XYZ Axis Motor Driver

Professional Closed Loop Driver

E Axis Motor Driver

Professional Closed Loop Driver

Power

Input voltage: 220V(±10%), 50Hz Input current: 32A

Acceptable File Formats

.stl, .obj, .amf and G-Code

Warranty

12 Months

AMC (Optional)

15%
